AWEL Centrifuge

AWEL a new French brand of centrifuge offers a full range of laboratory centrifuges to meet most of your application requirements.

- Rotor exchange without tool (MF series)

- Easy of use,  reduced height of centrifuge enhances easy loading & unloading samples

- Visible blue light as end of run indication

- Low noise level

- Motorized lid latch for easy door closing

- Speed limit auto warming for individual rotor, rotor wont be over speed

- Horizontal level warning, centrifuge will warn if the centrifuge is placed on slope table

- Lip open key button at side of body for lost electric supply

- 1 week, 3 months and half year lubricating oil renew warning sound

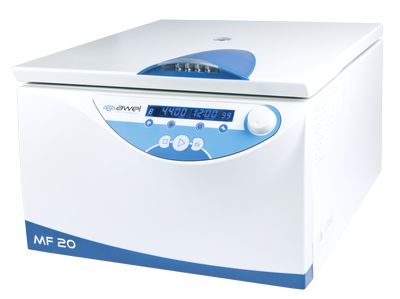

MF20

MF 20

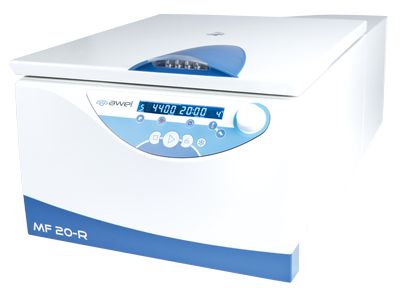

MF20-R

MF 20-R

The MF 20 series, 4 x 200 ml, is designed to suit all your protocols up to 20 000 xg. AWELock rotor exchange without tools and large choice of accessories. They are perfect for cell culture: optimized control at  low speed, programmable acceleration and braking  rates, no vibration, convenient height for ease of  loading and unloading.

Specification

MF 20

MF 20-R

Max. speed swing-out rotor

4400 rpm

4400 rpm

Max. speed Angle rotor

12600 rpm

13800 rpm

Max. RCF swing-out rotor

3500 xg

3500 xg

Max. RCF Angle rotor

17800 xg

20350 xg

Max. capacity swing-out rotor

4 x 200 ml

4 x 200 ml

Max. capacity Angle rotor

8 x 50 ml

8 x 50 ml

Max. speed swing-out rotor

4400 rpm

4400 rpm

Max. speed Angle rotor

12600 rpm

13800 rpm

Control system

microprocessor

microprocessor

speed range

500 to 12600 rpm

500 to 13800 rpm

speed precision

20 rpm

20 rpm

Temperature Range

 -

-20°C to + 60°C

Timer

0 - 99h50 and continuous

0 - 99h50 and continuous

Acceleration / Braking Rates

10/10

10/10

Programs

10

10

Lid Opening

motorized

motorized

Motor type

induction

induction

Certification

EC marked : iEC 1010-1 ; iEC 1010-2-020 Directives

Dimensions (HxWxD)

280 x 420 x 520 mm

280 x 420 x 750 mm

Crating (HxWxD)

460 x 610 x 650 mm

460 x 610 x 890 mm

Weight (Net/Crated)

50 / 56 kg

70 / 79 kg

230 V - 50 Hz version

20020001

20021001

Ref. Accessories for MF 20 and MF-20-R

30020019             sL-200 swing-out rotor    4 x 200 ml

30000035             N-200 buckets for sL-200 swing-out rotor - set of 4

30000008             BL-125/200 lids for N-125 & N-200 buckets - set of 4

30000023             inserts for 7 x 1.5/2 ml microtubes - set of 4

30000017             inserts for 12 x 5 ml open tubes - set of 4

30000010             inserts for 6 x 5-7 ml collection tubes - set of 4

30000020             inserts for 7 x 5-7 ml BD & Greiner collection tubes set of 4

30000024             inserts for 9 x 5-7 ml Terumo coll. tubes - set of 4

30000012             inserts for 6 x 10 ml collection tubes - set of 4

30000021             inserts for 7 x 10 ml BD collection tubes - set of 4

30000014             inserts for 3 x 15 ml conical tubes - set of 4

30000022             inserts for 4 x conical tubes dia. 22 mm - set of 4

30000016             inserts for 1 x 50 ml conical tube - set of 4

30000031             inserts for 1 x 100 ml tube dia. 44 mm - set of 4

30020002             sL20-MTP swing-out rotor for microtitration buckets

30000026             2 microtitration buckets - capacity 2 x 3 microplates

30020003             AMF20-32.15 Angle rotor    32 x 15 ml

30020008             AMF20-24 - 24 x 1.5/2 ml Angle rotor (MF 20-R: 20350 xg)

30020016             AMF20-30 - 30 x 1.5/2 ml Angle rotor (MF 20-R: 17990 xg)

30020014             Adaptors for PCR tubes dia. 8 mm - set of 12

30020017             Adaptors for PCR tubes dia. 6 mm - set of 12

30020006             AMF 20-10 - 10 x 10 ml Angle rotor (MF 20-R: 18130 xg)

30020007             AMF 20-8 - 8 x 50 ml conical Angle rotor (MF 20-R: 15000 xg)

30020012             Adaptors for 15 ml conical tubes - set of 8

30020013             Cushions for 50 ml round bottom tubes - set of 8

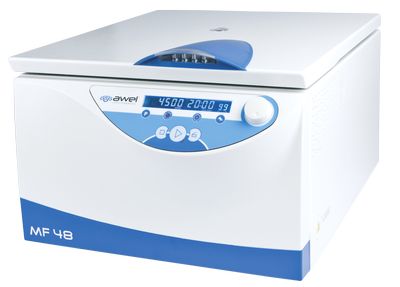

MF 48

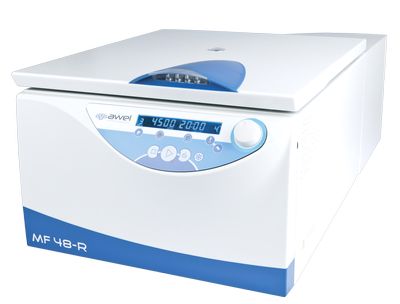

MF 48-R

Specification

MF 48

MF 48-R

Max. speed  Swing-out rotor

4500 rpm

4500 rpm

Max speed  Angle rotor

12600 rpm

13800 rpm

Max. RCF Swing-out rotor

3820 xg

380 xg

Max. RCF  Angle rotor

17800 xg

20350 xg

Control system

microprocessor

microprocessor

speed range

500 to 12600 rpm

500 to 13800 rpm

speed precision

20 rpm

20 rpm

Temperature Range

 -

-20°C to + 60°C

Timer

0 - 99h50 and continuous

0 - 99h50 and continuous

Acceleration / Braking Rates

10/10

10/10

Programs

10

10

Lid Opening

motorized

motorized

Motor type

induction

induction

Certification

EC marked : iEC 1010-1 ; iEC 1010-2-020 Directives

Dimensions (HxWxD)

280 x 420 x 520 mm

280 x 420 x 750 mm

Crating (HxWxD)

460 x 610 x 650 mm

460 x 610 x 890 mm

Weight (Net/Crated)

50 / 56 kg

70 / 79 kg

230 V - 50 Hz version

20022001

20023001

Ref. Accessories for MF 40 and MF-40-R

30022016             sL-400 swing-out rotor    4 x 400 ml

30002024             N-400 s buckets for sL-400 swing-out rotor

30002025             BL-400 s lids for N-400s - set of 4

30002012             inserts for 13 x 1.5/2 ml microtubes - set of 4

30002005             inserts for 14 x 5-7 ml collection tubes - set of 4

30002009             inserts for 15 x 5-7 ml BD collection tubes - set of 4

30002010             inserts for 19 x 5-7 ml Terumo coll. tubes - set of 4

30002006             inserts for 12 x 10 ml collection tubes - set of 4

30002007             inserts for 7 x 15 ml conical tubes - set of 4

30002023             inserts for 5 x 20 ml tubes - set of 4

30002011             inserts for 8 x conical tubes dia. 22 mm - set of 4

30002014             inserts for 4 x 50 ml conical tube - set of 4

30002026             inserts for 1 x 100 ml tube dia. 52 mm - set of 4

30002016             inserts for 1 x 250 ml tube - set of 4

30002015             inserts for 1 x 400 ml tube - set of 4

30022002             sL48-MTP swing-out rotor for microtitration buckets

30000026             2 Microtitration buckets - capacity 2 x 3 microplates

30022003             AMF48-32.15 Angle rotor    32 x 15 ml

30022009             AMF48-24 Angle rotor - 24 x 1.5/2 ml (MF 48-R: 20350 xg)

30022012             AMF48-30 Angle rotor - 30 x 1.5/2 ml (MF 48-R: 17990 xg)

30020014             Adaptors for PcR tubes dia. 8 mm - set of 12

30020017             Adaptors for PcR tubes dia. 6 mm - set of 12

30022014             AMF 48-PcR Angle rotor - 6 PcR strips (MF 48-R: 17760 xg)

30022006             AMF48-10 Angle rotor - 10 x 10 ml tubes (MF 48-R: 18130 xg)

30022007             AMF48-8 Angle rotor - 8 x 50 ml conical (MF 48-R: 15000 xg)

30020012             Adaptors for 15 ml conical tubes - set of 8

30020013             cushions for 50 ml round bottom tubes - set of 8

30022008             AMF48-6 Angle rotor - 6 x 100 ml (MF 48-R: 15000 xg)

Classical Model

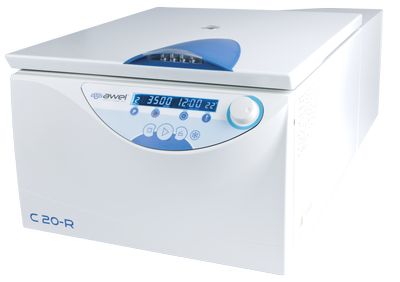

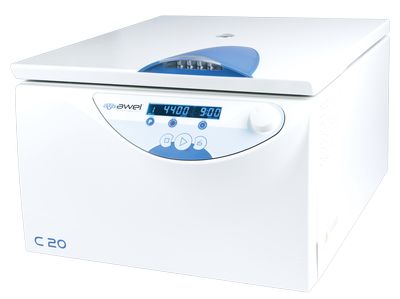

C 20

C 20-R

The C 20 series,  4 x 200ml, offers user-friendly ergonomics: motorized lid opening, reduced height to ensure perfect visibility while loading samples, 10 programs in memory for immediate use, AWELight illuminated handle to indicate end of run…

Specifications

C 20

20-R

Max. speed swing-out rotor

4400 rpm

4400 rpm

Max. speed Angle rotor

4400 rpm

4400 rpm

Max. RCF swing-out rotor

3500 xg

3500 xg

Max. RCF Angle rotor

3030 xg

3030 xg

Max. capacity swing-out rotor

4 x 200 ml 32 x 15 ml

4 x 200 ml 32 x 15 ml

Max. capacity Angle rotor

4 x 200 ml 32 x 15 ml

4 x 200 ml 32 x 15 ml

Control system

microprocessor

microprocessor

speed range

500 to 4400 rpm

500 to 4400 rpm

Timer

0 - 99h50 and continuous

0 - 99h50 and continuous

Acceleration / Braking Rates

1/1

1/1

Programs

10

10

Lid Opening

motorized

motorized

Motor type

induction

induction

Certification

EC marked : iEC 1010-1 ; iEC 1010-2-020 Directives

Dimensions (HxWxD)

280 x 420 x 520 mm

280 x 420 x 750 mm

Crating (HxWxD)

460 x 610 x 650 mm

460 x 610 x 890 mm

Weight (Net/Crated)

50 / 56 kg

70 / 79 kg

230 V - 50 Hz version

2000000

20001001

Ref. Accessories for C 20 and C 20-R

30000034        sO-200 swing-out rotor    4 x 200 ml

30000035        N-200 buckets for sO-200 swing-out rotor - set of 4

30000008        BL-125/200 lids for N-125 & N-200 buckets - set of 4

30000023        inserts for 7 x 1.5/2 ml microtubes - set of 4

30000017        inserts for 12 x 5 ml open tubes - set of 4

30000010        inserts for 6 x 5-7 ml collection tubes - set of 4

30000020        inserts for 7 x 5-7 ml BD & Greiner collection tubes set of 4

30000024        inserts for 9 x 5-7 ml Terumo collection tubes - set of 4

30000012        inserts for 6 x 10 ml collection tubes - set of 4

30000021        inserts for 7 x 10 ml BD collection tubes - set of 4

30000014        inserts for 3 x 15 ml conical tubes - set of 4

30000022        inserts for 4 x conical tubes dia. 22 mm - set of 4

30000016        inserts for 1 x 50 ml conical tube - set of 4

30000031        inserts for 1 x 100 ml tube dia. 44 mm - set of 4

30000004        A20-32.15 Angle rotor    32 x 15ml

For details, please feel free to contact our Sales Department on 2390 2293
